ACE MAP80 Planta mezcladora de asfalto

Capacidad de producción:

120t/h

Potencia total:

330kW

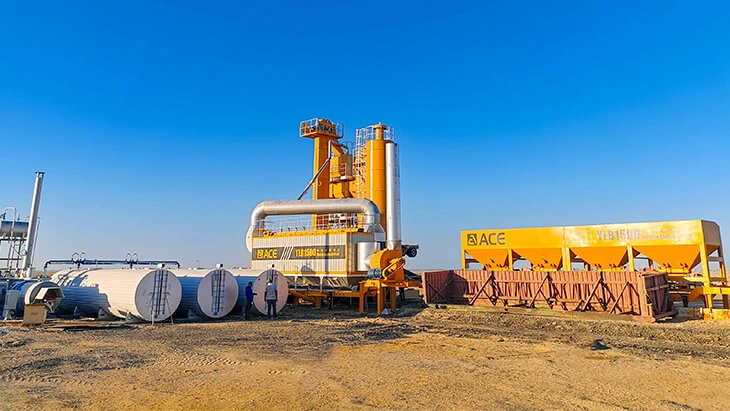

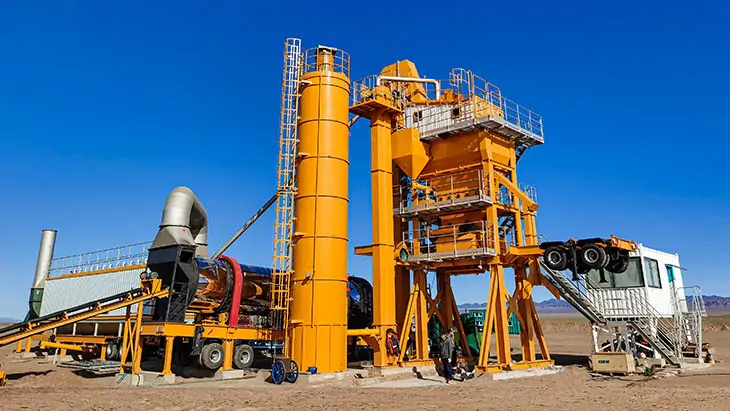

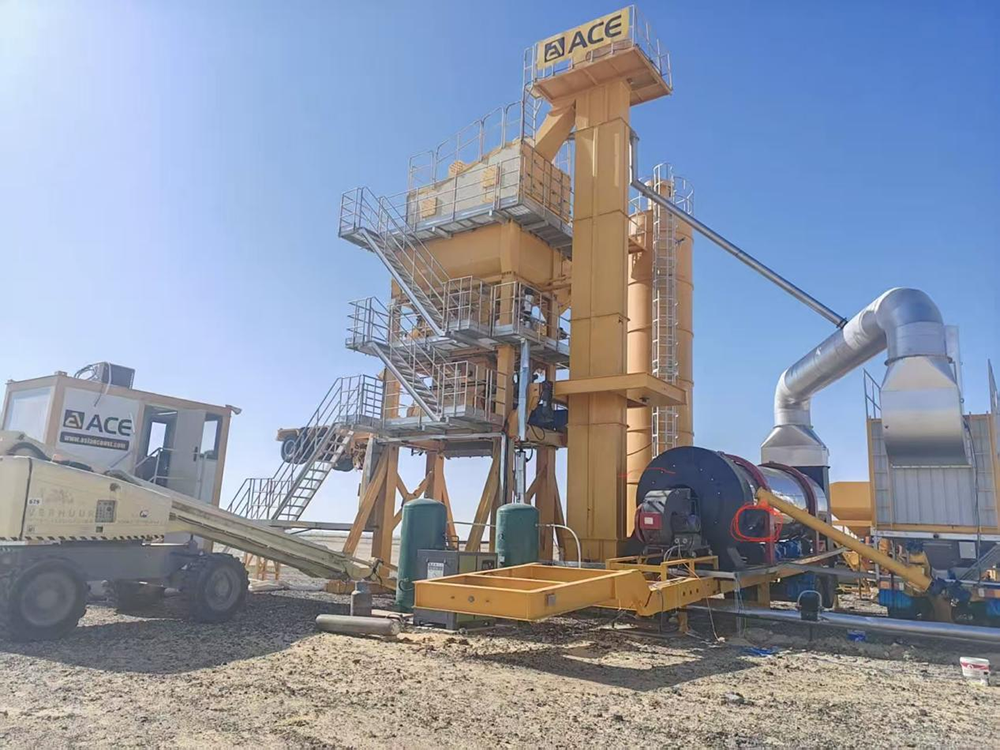

The MAP Series mobile asphalt mixing plant, developed by ACE Group,Mobile asphalt plants, also called portable asphalt plant, mobile asphalt mixing plants, portable asphalt mixing plants, featured by mobility and fast relocation. Mobile asphalt plants reduce the costs and time for plants relocation. MAP Series is mobile asphalt plant,batch mix, with chassis under main modules. This plant is ideally suited for small to medium-sized paving projects that require frequent moves.Dismantling and re-installation of the whole plant takes less than 7 days (not including transportation).

Ver detalles completos

Obtener el último precio Video Calls

Características del producto Parámetros del producto

Características del producto

1. Fast Relocation

Modular design; main modules are equipped with trailers and chassis; fast and convenient for relocation

2. Batch Mix

Precise screening, accurate measurement, batch mixing; producing good quality finished asphalt

3. Minimal Foundation Work

Compact design, less land occupation. Can be installed on narrow areas, minimal foundation work required.

4. Optimized Drying Drum

Optimized drying drum and mixer, better performance; key parts made of anti-wear and sturdy material, longer service life.

5. User-Friendly

PLC system, intelligent control; easy for operation. Auto, Manual and Semi-auto operation modes available. Multilingual control software.

6. Suitable for Long Road Construction

It is suitable for pavement of a quite long road, and quite popular in a remote area with lower density both population and road.

Parámetros del producto

Model		MAP60	MAP80	MAP120	MAP160
Capacity		60 t/h	80 t/h	120 t/h	160 t/h
Mixer Capacity		700 kg/batch	1000 kg/batch	1500 kg/batch	2000 kg/batch
Fuel Consumption		Diesel consumption: 5.5-7 kg/ton
Weighing Precision		Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2%
Hot Asphalt Temperature		130℃-165℃ (adjustable)
Air Emissions		≤ 20 mg/μm³
Working Noise		≤ 70 db(A)
Operation		Full Auto/Manual Operation
Installation Power		157 kW	241 kW	330 kW	412 kW
Voltage		220V/380V-50Hz (adjustable)
Plant Covering Area	Length	35m	40m	40m	42m
	Width	26m	28m	32m	32m
	Height	15m	15m	16m	16m
Documents		Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate.
